Re: Silicone hoses from USA Posted by XLR99 [Email] (#1699) [Profile/Gallery] (more from XLR99) on Fri, 7 Jul 2017 17:14:54 In Reply to: Re: Silicone hoses from USA, three_jeeps, Wed, 5 Jul 2017 18:33:41 Members do not see ads below this line. - Help Keep This Site Online - Signup |

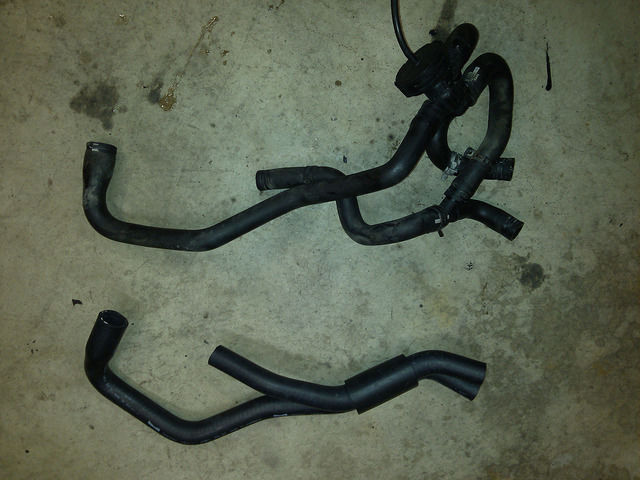

Here's a pic of the stock 'bypass valve of idiocracy' hoses, next to the old Mackay hose set to get rid of that mess. I put them in the same orientation, the firewall connections to the heater core are on the right, engine tie-ins to the left. Without the valve, it's just two simple hoses to four pipe connections.
You'll need to leave the solenoid connected electrically to avoid throwing a CEL. I just looped the wire around and the solenoid sits behind the brake booster now.
Also, before starting, go out and get a remote hose clamp tool for $30-40 - worth it's weight in gold for this little project!
http://www.saabnet.com/tsn/members/gallery.html?memberID=1699&do=show&id=26939
