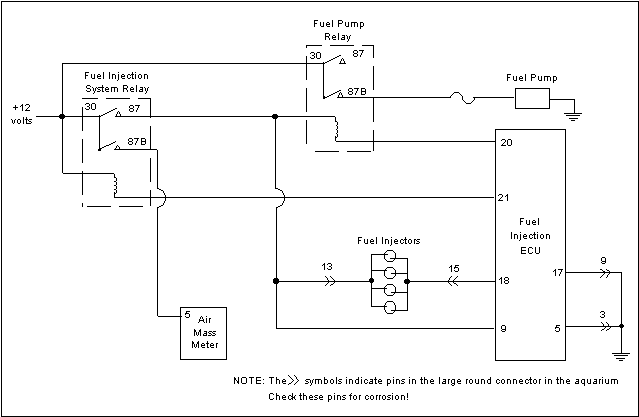

Simplified fuel injection control schematic
Be sure to check pins 13 and 15 in the large round connector in the aquarium. Corrosion can cause current to be limited enough to prevent the injectors from firing.
