Re: throttle body actuator pinouts Posted by Dana [Email] (#2822) [Profile/Gallery] (more from Dana) on Sun, 20 Mar 2022 13:04:36 In Reply to: throttle body actuator pinouts, Ran When Parked [Profile/Gallery] , Wed, 16 Mar 2022 10:51:11 Members do not see ads below this line. - Help Keep This Site Online - Signup |
The web page you shared incorrectly shows pin numbers for the 07 SAAB. Pin numbers were associated with the 03-06

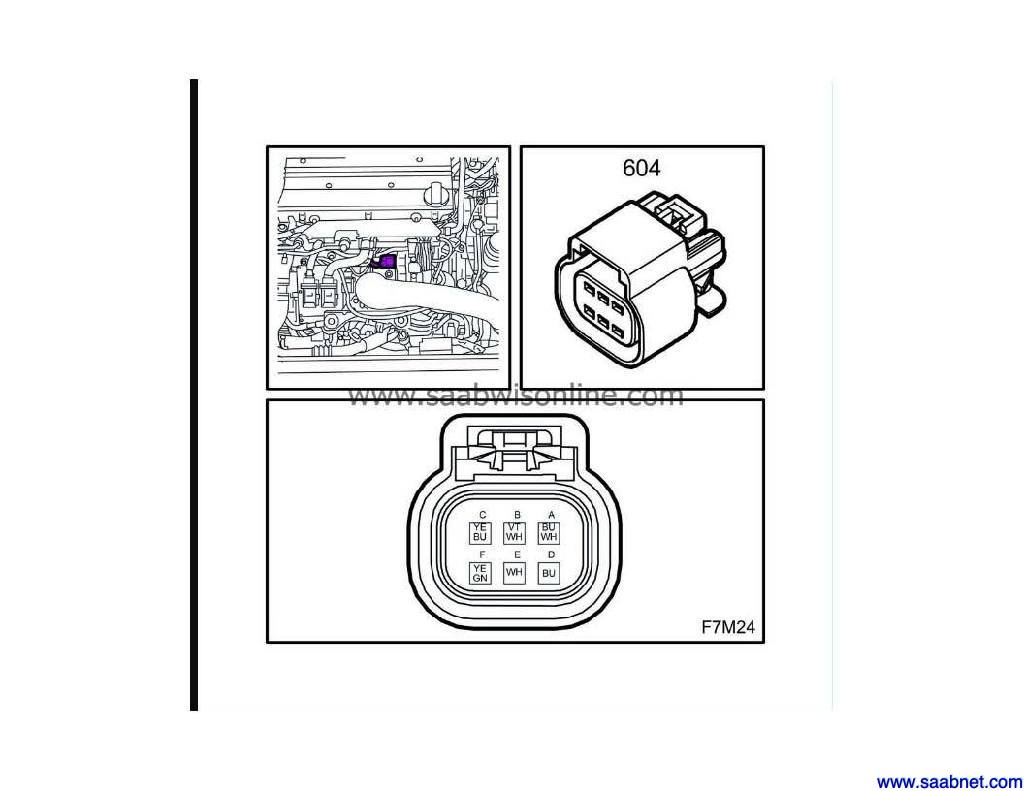

In 07, SAAB eliminated two wires to the ECU as being redundant (pins #2 and #8) and changed the connector to a six pin (A through F) from the 8 pin design. Internal to the throttle housing, the wires which were connected to #2 and #8 pins were now piggy backed onto internal wiring of sensor #1.
You should look at your throttle cable connector, If it is six pin, you should be ok. But the wiring labeling is pins A though F (six pins) not 1 through 8 as that 07 WIS voltage chart shows.
